"The Reality About Pixels"

The Fundamental Panorama Equations

Perspective Images

Fundamental Rendering Equations: 3D to 2D

where i and j are the coordinates of the pixel relative to the center of the image, and x, y, and z are their coordinates in 3D.

Fundamental Authoring Equations: 2D to 3D

where f is the focal length in pixels.

Cylindrical Images

Fundamental Rendering Equations: 3D to 2D

where v₀ is the coordinate of the equator.

Fundamental Authoring Equations: 2D to 3D

Equirectangular Spherical Images

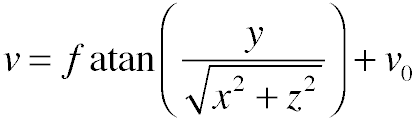

Fundamental Rendering Equations: 3D to 2D

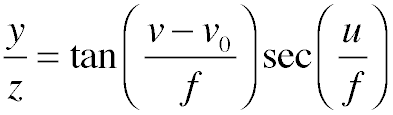

Fundamental Authoring Equations: 2D to 3D

Equatorial Fisheye Images

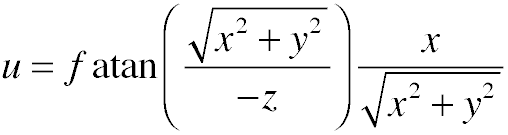

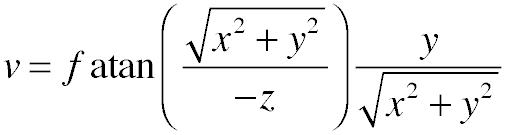

Fundamental Rendering Equations: 3D to 2D

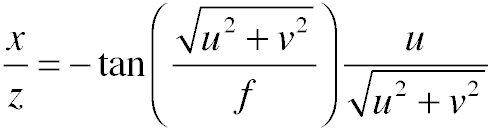

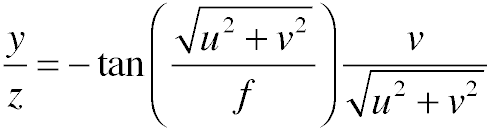

Fundamental Authoring Equations: 2D to 3D

Polar Fisheye Images

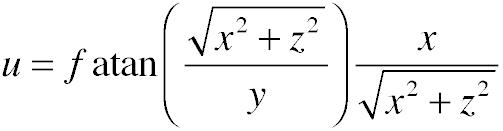

Fundamental Rendering Equations: 3D to 2D

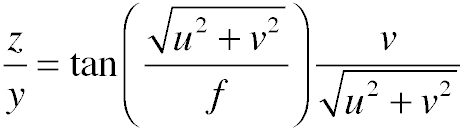

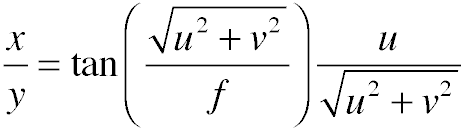

Fundamental Authoring Equations: 2D to 3D
